  1. cd ../klipper make clean
    • cd ../klipper

    • make clean

    • make menuconfig

    • make

  2. keep boot pressed, press reset, release reset, release boot lsusb  (board is in DFU mode) sudo dfu-util -a 0 -D ~/CanBoot/out/canboot.bin --dfuse-address 0x08000000:force:mass-erase -d 0483:df11
    • keep boot pressed, press reset, release reset, release boot

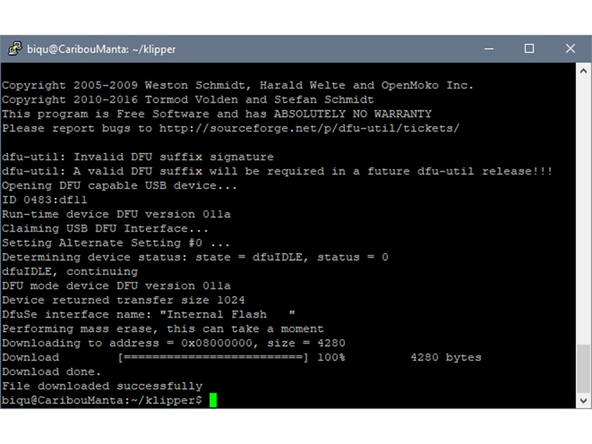

    • lsusb (board is in DFU mode)

    • sudo dfu-util -a 0 -D ~/CanBoot/out/canboot.bin --dfuse-address 0x08000000:force:mass-erase -d 0483:df11

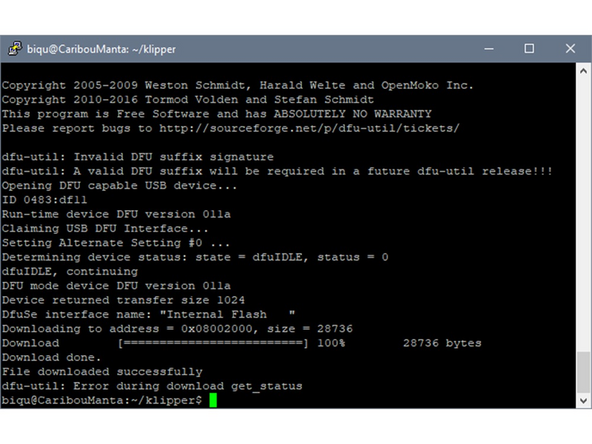

    • sudo dfu-util -a 0 -d 0483:df11 --dfuse-address 0x08002000:force:leave -D ~/klipper/out/klipper.bin

  3. sudo nano /etc/network/interfaces.d/can0 allow-hotplug can0 iface can0 can static  bitrate 250000  up ifconfig $IFACE txqueuelen 1024 reboot

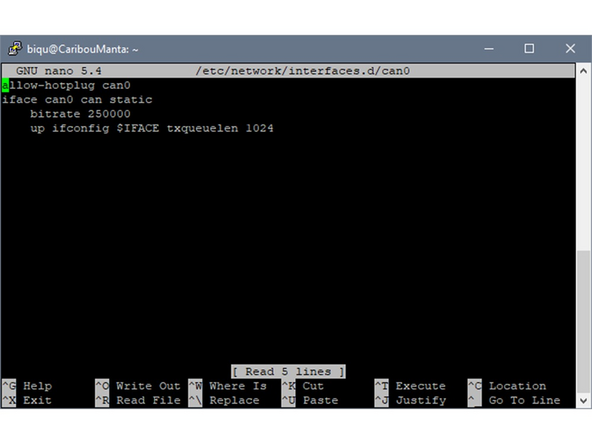

    • sudo nano /etc/network/interfaces.d/can0

    • allow-hotplug can0 iface can0 can static bitrate 250000 up ifconfig $IFACE txqueuelen 1024

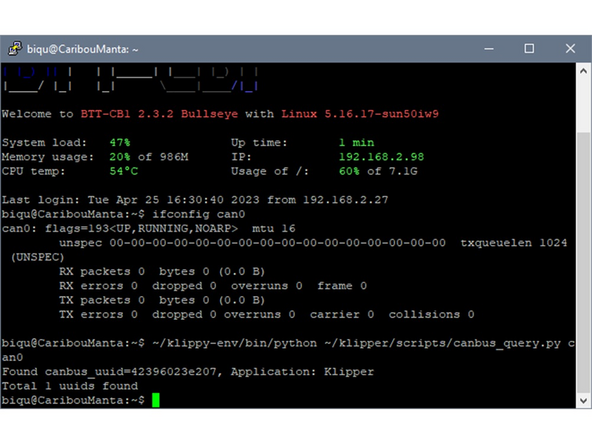

    • reboot

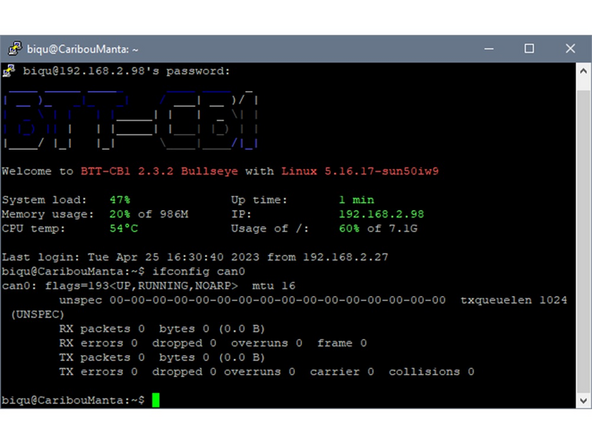

    • ifconfig can0

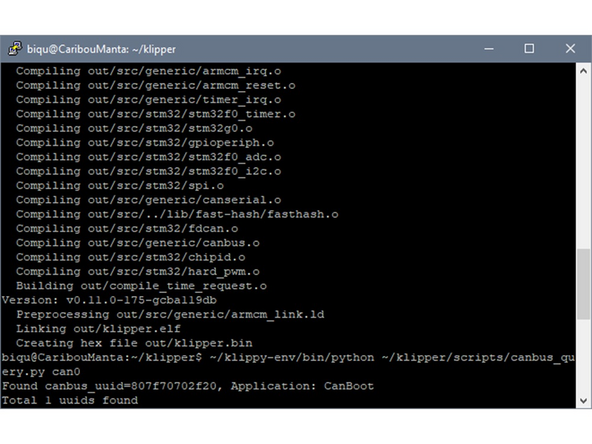

    • ~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0

  4. insert the canbus-id into printer.cfg

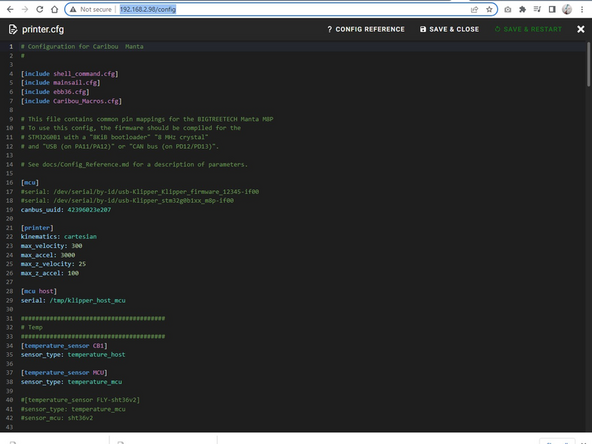

    • insert the canbus-id into printer.cfg

  5. cd ~/CanBoot make clean

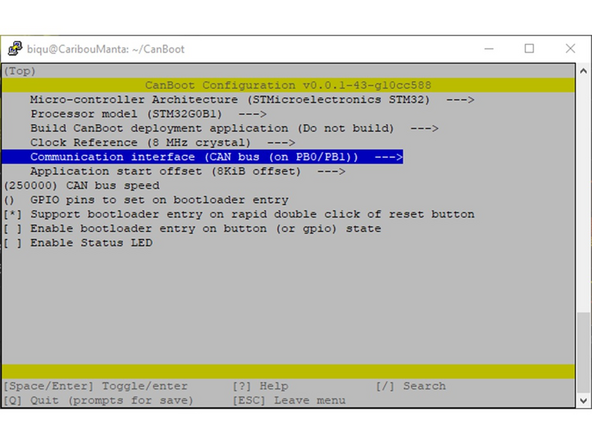

    • cd ~/CanBoot

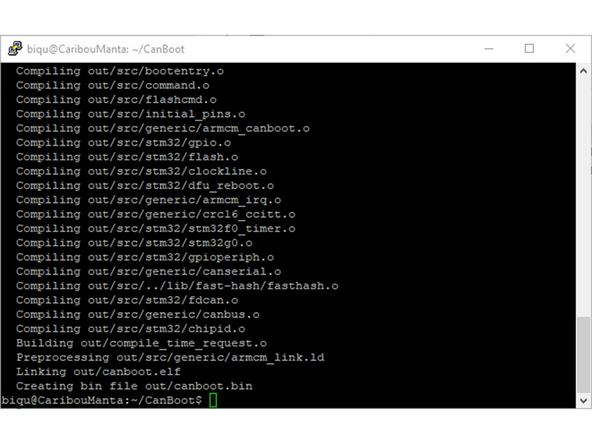

    • make clean

    • make menuconfig

    • make

  6. keep boot pressed, press reset, release reset, release boot lsusb sudo dfu-util -a 0 -D ~/CanBoot/out/canboot.bin --dfuse-address 0x08000000:force:mass-erase -d 0483:df11

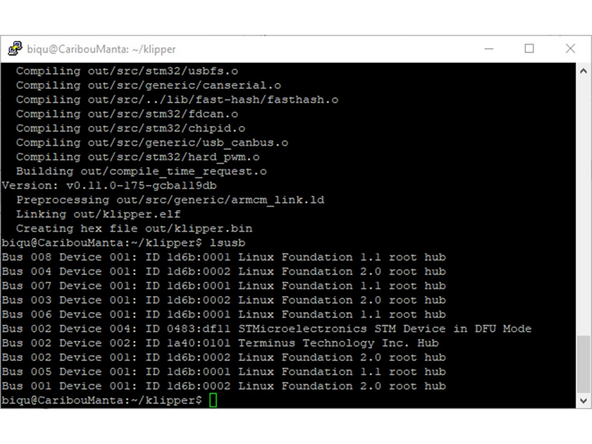

    • keep boot pressed, press reset, release reset, release boot

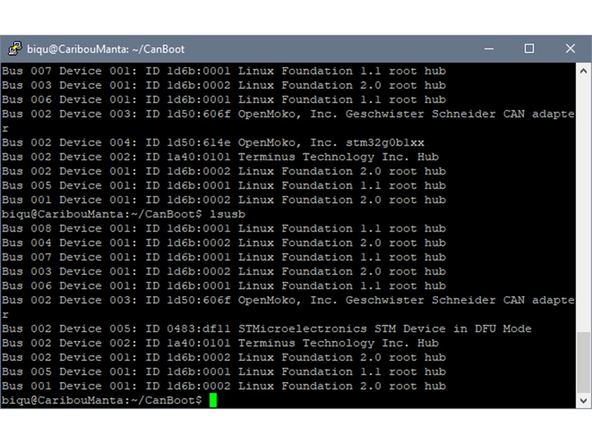

    • lsusb

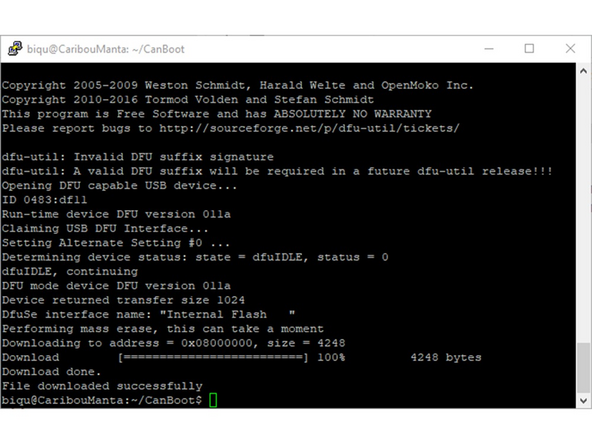

    • sudo dfu-util -a 0 -D ~/CanBoot/out/canboot.bin --dfuse-address 0x08000000:force:mass-erase -d 0483:df11

    • disconnect USB

    • connect EBB36 via Canbus connector and 24V

    • connect Manta to 24V

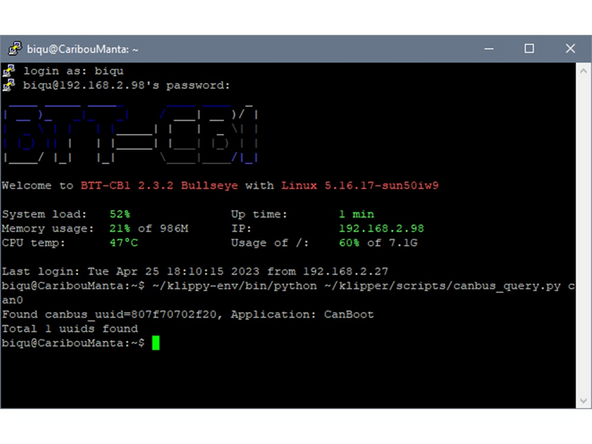

    • ~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0

  7. cd ../klipper make clean make menuconfig
    • cd ../klipper

    • make clean

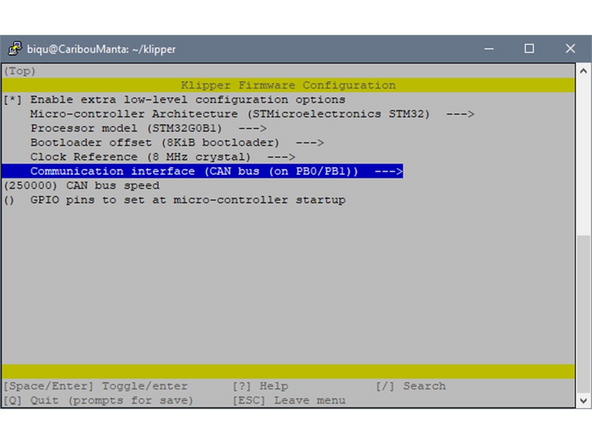

    • make menuconfig

    • make

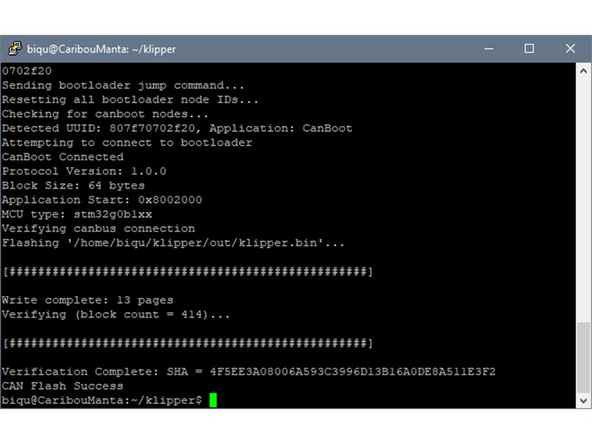

    • python3 ~/klipper/lib/canboot/flash_can.py -u 807f70702f20

  8. Insert wisdom here.

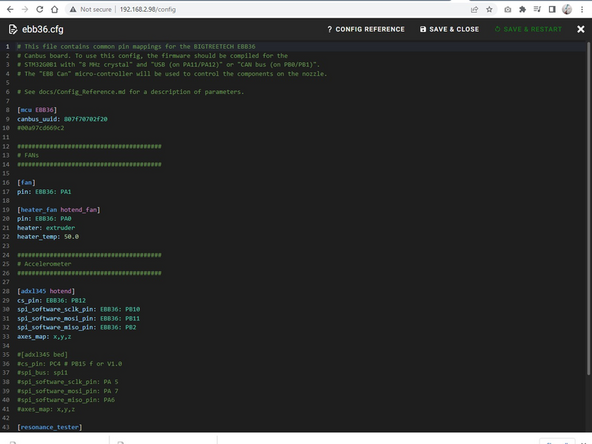

    • Insert wisdom here.
