06. Assembly of the Duet Box

(1) 2.0x75mm Hexagonal Screwdriver

(2) Pliers Wrench

(3) Engineer Scriber

(1) Duet Box

(2) Duet 2 Wifi / Ethernet

(3) 4x M3 Nuts

(4) 11x M3 Square Nuts

(5) 4x M3x8mm Hexagon Socket Head Cap Screw

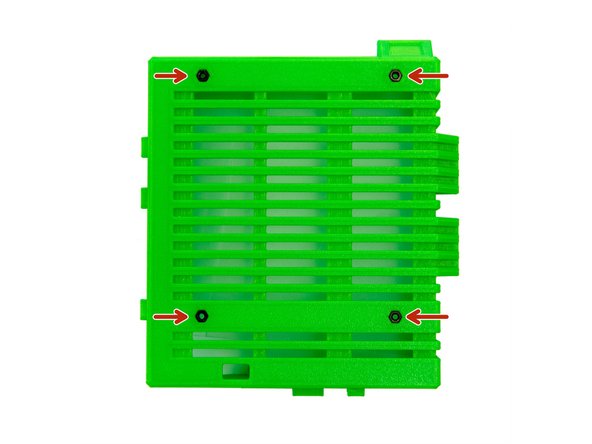

Insert 4x M3 hex nuts (e.g. using a screwdriver or an engineer scriber) into the back of the Einsy Box.

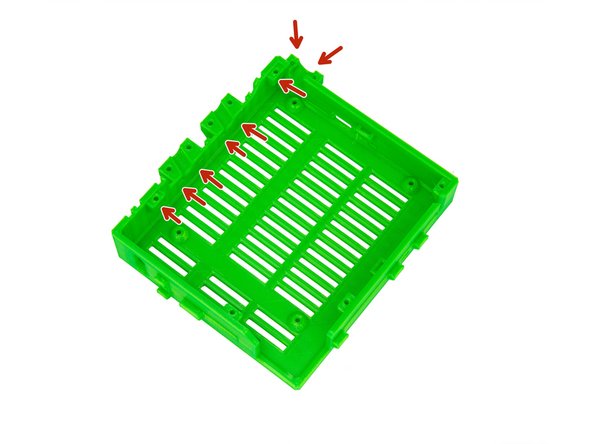

Slide 11x M3 square nuts into the slots provided on the inside of the Duet Box.

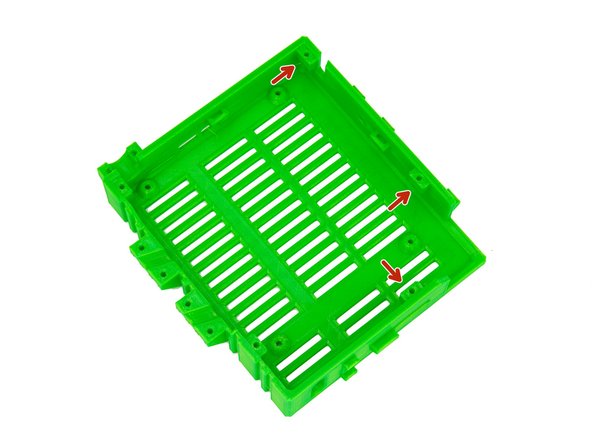

Here, we recommend using a pliers wrench to better insert the square nuts. Also make sure that the nuts match the holes exactly.

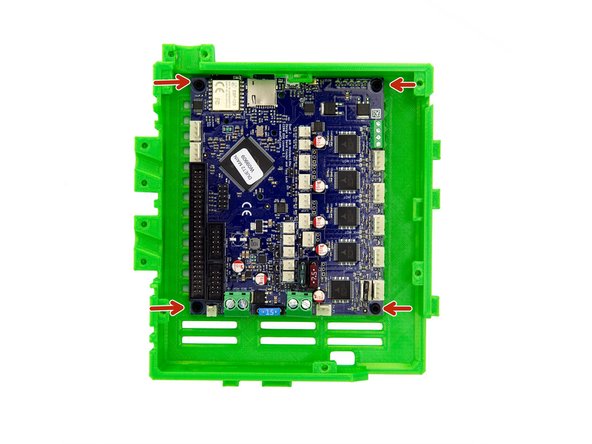

Finally, the Duet Board is attached to the Duet Box using 4x M3x8mm Hexagon Socket Head Cap Screw.

The assembly of the Duet Box is complete.

Proceed to instruction 07. Building the power supply if you have an unassembled power supply.

If your power supply is already assembled, proceed to Instruction 08. Installing the Duet Box and Power Supply.
