(2) Scalpel
-
(3) Cutting Tool for PTFE tube
-
-
-

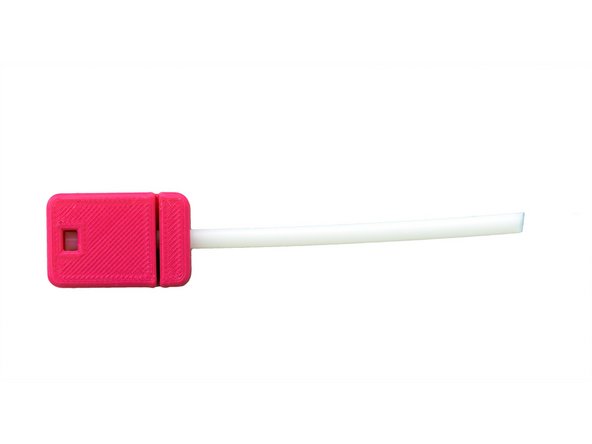

Push the PTFE tube completely into the cutting tool.
-

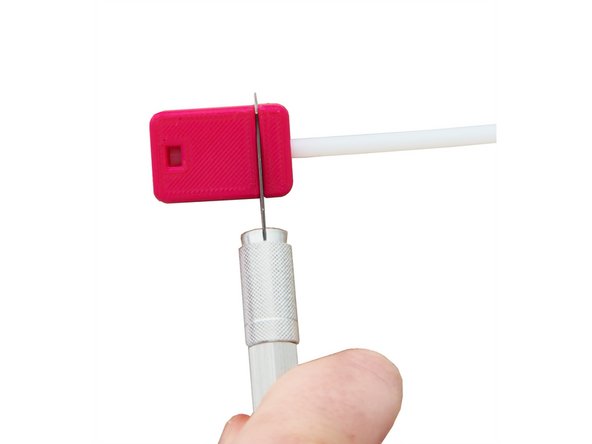

You can check whether the PTFE tube is seated correctly in the viewing window in the cutting tool.
-

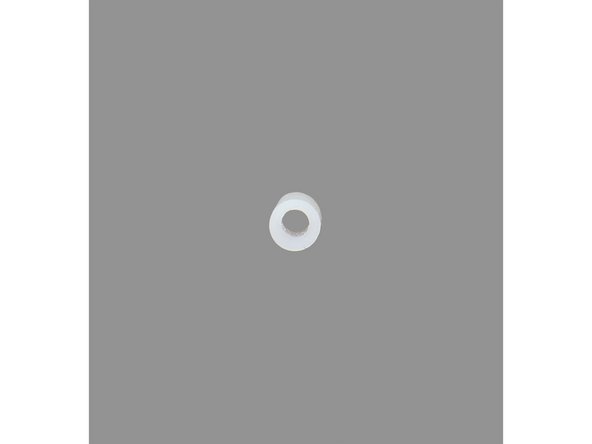

Make sure that the end of the PTFE tube that is visible in the viewing window is straight.
-
Cut the PTFE tube in the provided slot.
-
Using the scalpel, one side of the tube must be beveled in a funnel shape.
-
There must be no residues of the material in the PTFE tube.
-
-
-

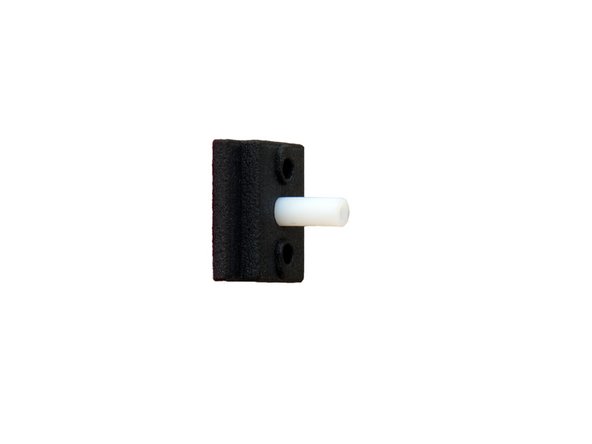

Push the PTFE tube through the opening in the Mosquito mount.
-

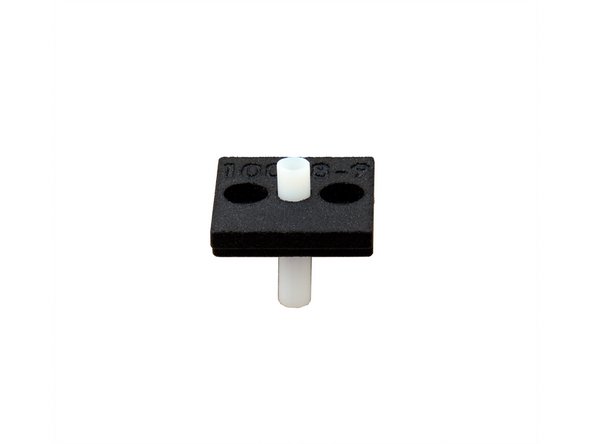

Align it so that the end of the PTFE tube with the funnel-shaped opening is above the side of the Mosquito mount with the lettering.
-

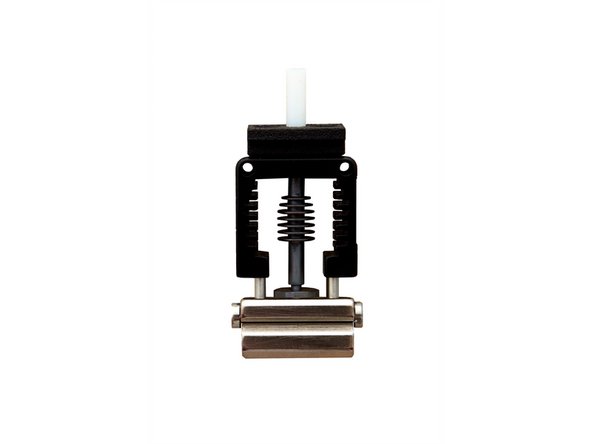

Place the Mosquito mount on the hotend so that the lettering is on top.
-
-
-

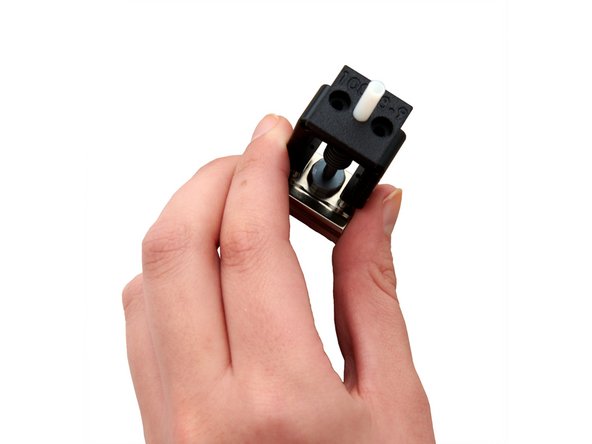

Push the PTFE tube through as far as possible.
-

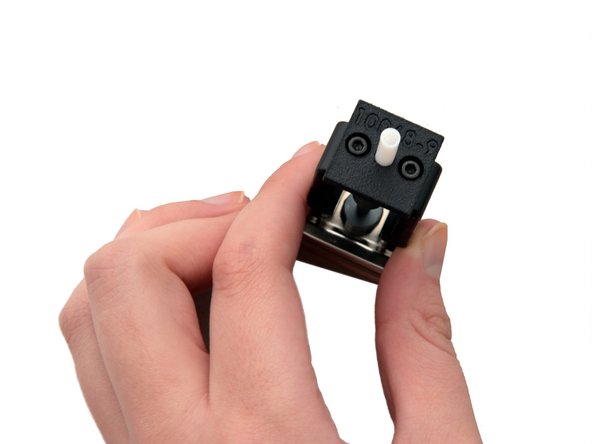

Secure the Mosquito mount on the hotend with 2x M2x6mm Hexagon Socket Head Cap Screws.
-

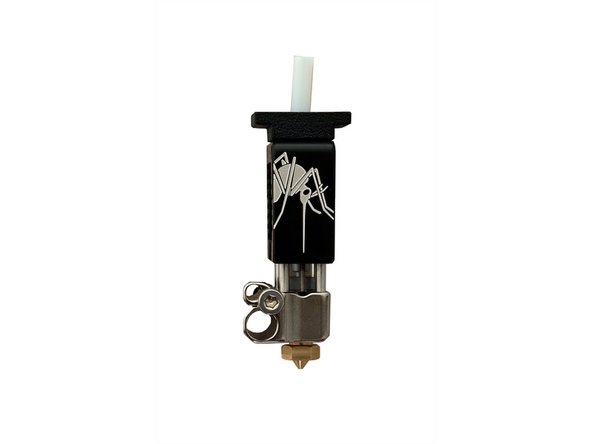

Finally, hand-tighten the nozzle into the hotend.
-
-
-

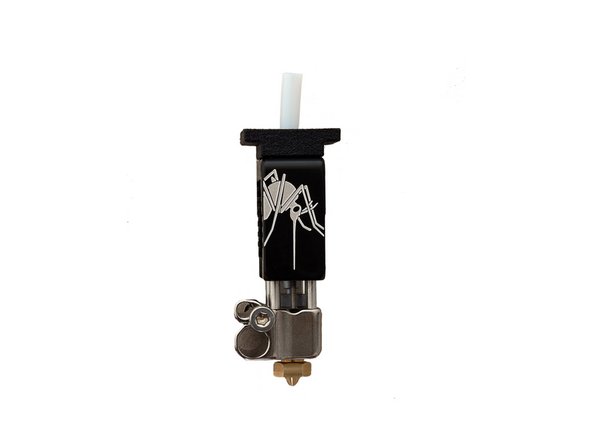

The Slice Engineering Hotend is now fully assembled.
-
Continue with instructions 15.1. Assembly of the Bondtech MK3S Mosquito Extruder.
-
