  1. Insert 2x M6x12mm Hexagon Socket Head Cap Screws into a corner bracket. Screw them loosely to the corner bracket using 2x T-Nuts. Pay attention to the alignment of the T-Nuts (Fig. 3).
    • Insert 2x M6x12mm Hexagon Socket Head Cap Screws into a corner bracket.

    • Screw them loosely to the corner bracket using 2x T-Nuts.

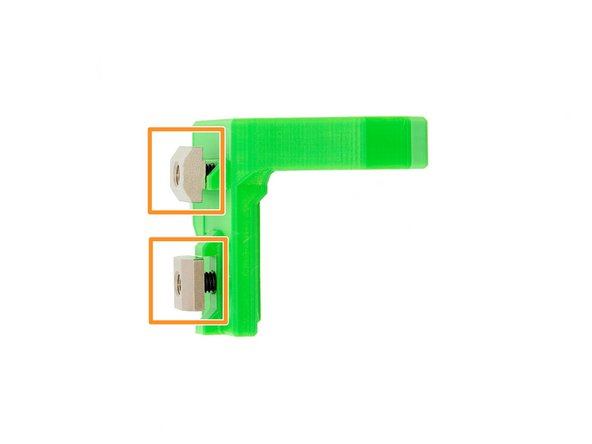

    • Pay attention to the alignment of the T-Nuts (Fig. 3).

    • Repeat this step for the other corner bracket.

  2. Place 2x M6x12mm Hexagon Socket Head Cap Screws in one of the z-top mounts. Screw them loosely to the z-mounts with 2x T-Nuts. Pay attention to the alignment of the T-Nuts (Fig. 3)

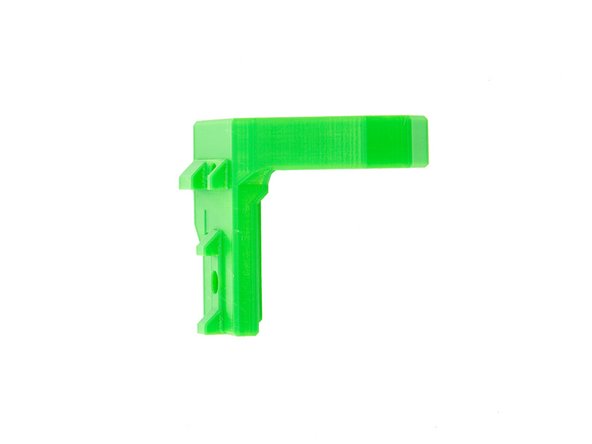

    • Place 2x M6x12mm Hexagon Socket Head Cap Screws in one of the z-top mounts.

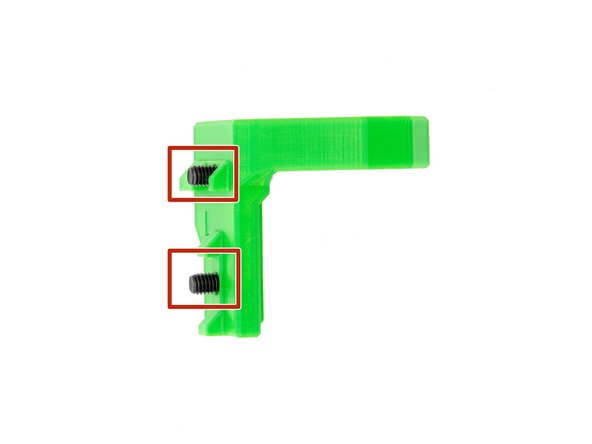

    • Screw them loosely to the z-mounts with 2x T-Nuts.

    • Pay attention to the alignment of the T-Nuts (Fig. 3)

    • Repeat this step for the other z-top mount.

  3. Slide one of the corner brackets into the right slot of the left z-extrusion so that the end of the extrusion and the corner bracket are level.
    • Slide one of the corner brackets into the right slot of the left z-extrusion so that the end of the extrusion and the corner bracket are level.

    • Now tighten the M6x12mm Hexagon Socket Head Cap Screws in the corner bracket on the Z-axis.

    • Repeat this step on the right side.

  4. Push the x-extrusion through the two T-Nuts. Make sure that the large holes in the x-extrusion are pointing up and the small holes are pointing down.

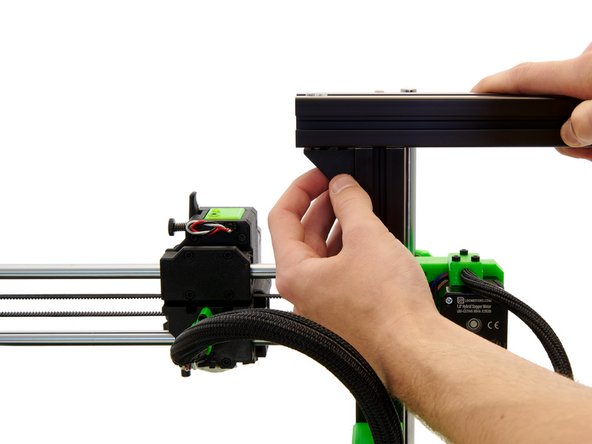

    • Push the x-extrusion through the two T-Nuts.

    • Make sure that the large holes in the x-extrusion are pointing up and the small holes are pointing down.

  5. Loosen the 2x M6x12mm Hexagon Socket Head Cap Screws in the corner brackets on the z-axis. Insert 2x M8x40mm Hexagon Socket Head Cap Screws into the x-axis and tighten them hand-tight. Insert 2x M8x40mm Hexagon Socket Head Cap Screws into the x-axis and tighten them hand-tight.

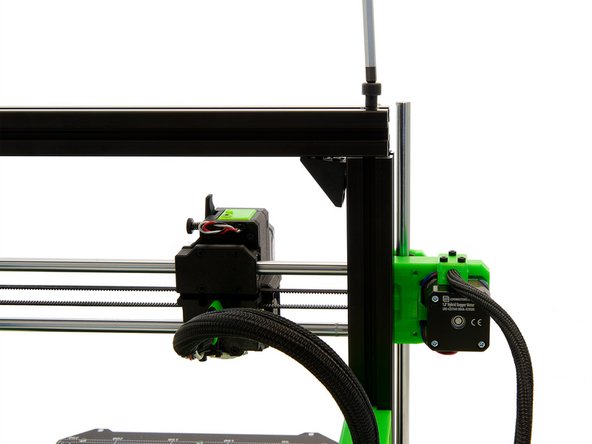

    • Loosen the 2x M6x12mm Hexagon Socket Head Cap Screws in the corner brackets on the z-axis.

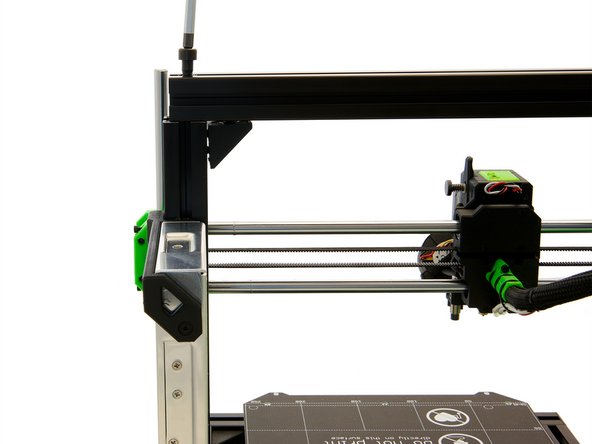

    • Insert 2x M8x40mm Hexagon Socket Head Cap Screws into the x-axis and tighten them hand-tight.

  6. Then press the two corner brackets against the x-axis and retighten the 2x M6x12mm Hexagon Socket Head Cap Screws. Remove the 2x M8x40mm Hexagon Socket Head Cap Screws from the x-axis.

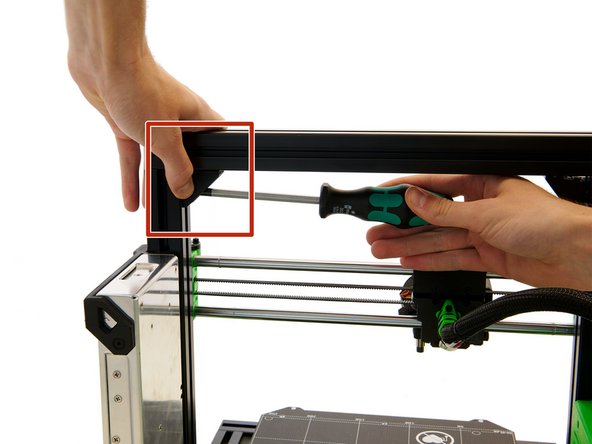

    • Then press the two corner brackets against the x-axis and retighten the 2x M6x12mm Hexagon Socket Head Cap Screws.

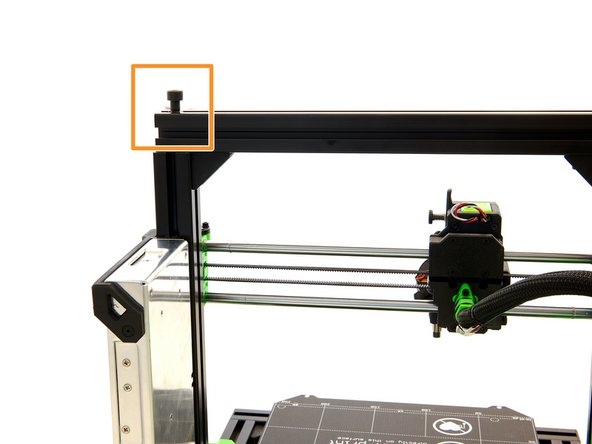

    • Remove the 2x M8x40mm Hexagon Socket Head Cap Screws from the x-axis.

    • The x-axis should now be movable to the right and left.

  7. Move the x-axis to the right. Slide the left z-top mount into the front slot of the left z-axis using the lower T-Nut. Carefully position the left hole in the z-top mount over the z-rod.

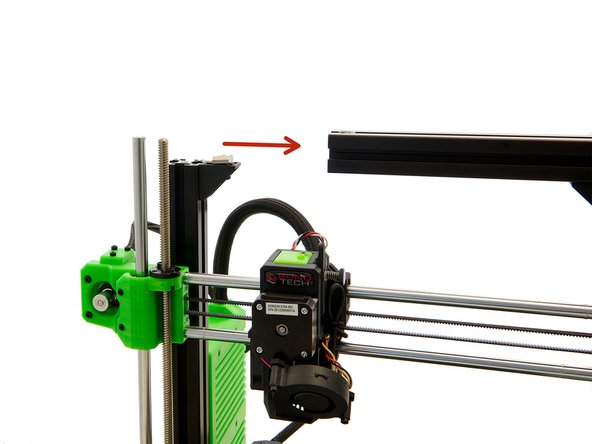

    • Move the x-axis to the right.

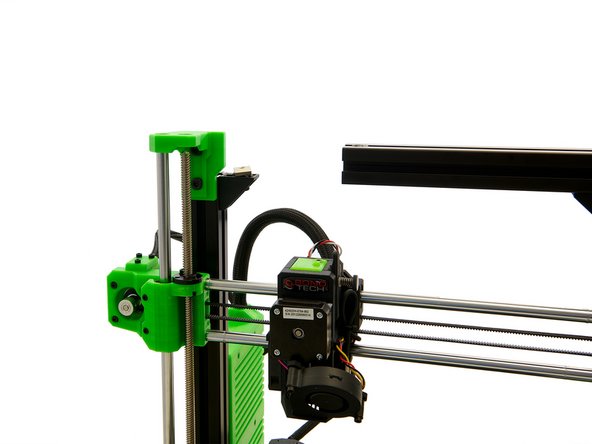

    • Slide the left z-top mount into the front slot of the left z-axis using the lower T-Nut.

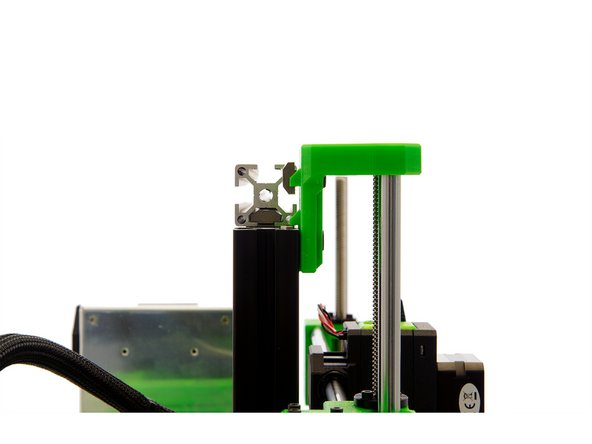

    • Carefully position the left hole in the z-top mount over the z-rod.

  8. Gently tap the z-top mount with a hammer so that it is at the same height as the z-axis. Slide the x-axis over the T-Nut and make sure that the Nut and the T-Nut are at the same level. Now, tighten only the lower M6x12mm Hexagon Socket Head Cap Screw.

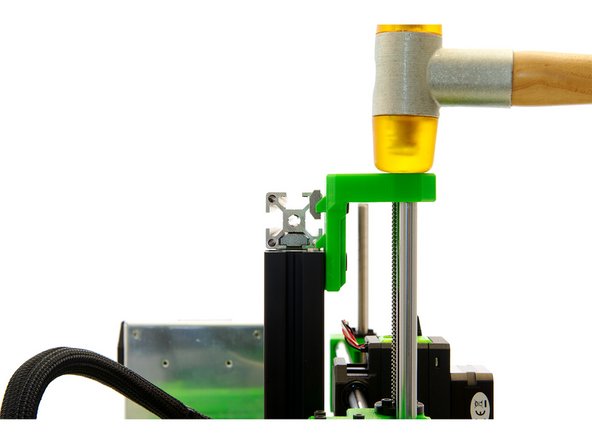

    • Gently tap the z-top mount with a hammer so that it is at the same height as the z-axis.

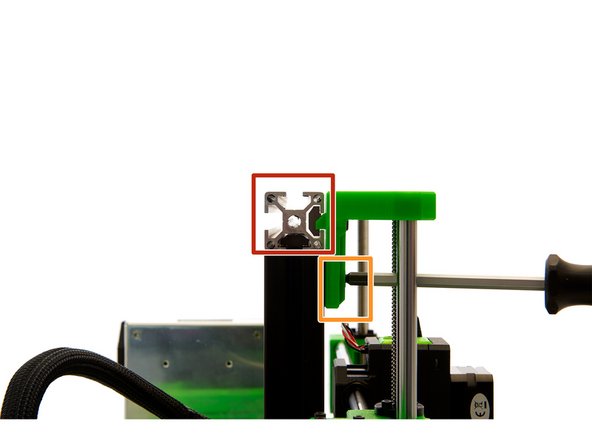

    • Slide the x-axis over the T-Nut and make sure that the Nut and the T-Nut are at the same level.

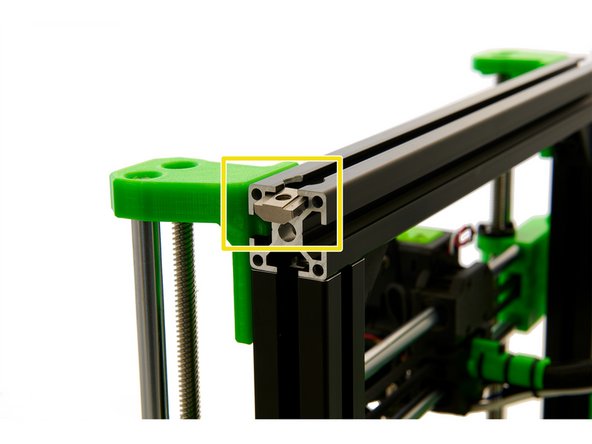

    • Now, tighten only the lower M6x12mm Hexagon Socket Head Cap Screw.

    • Repeat these two steps for the right z-top mount.

    • Place a T-Nut in the upper slot of the x-axis.

  9. Now, prepare the 2x End Caps by shortening the center part by half (e.g. using a side cutter). Be careful not to cut off too much or the end caps will not hold on the axis. Finally, attach both end caps to the ends of the x-axis.

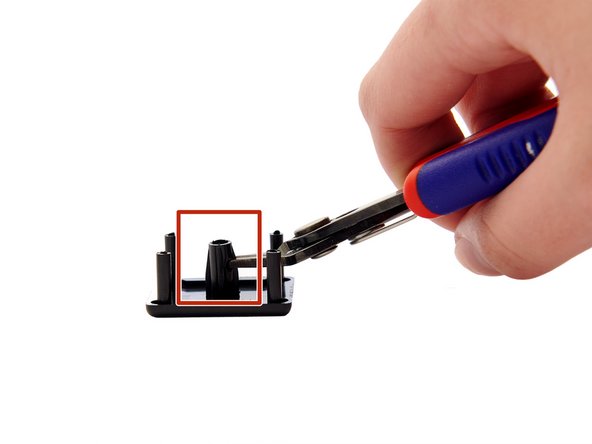

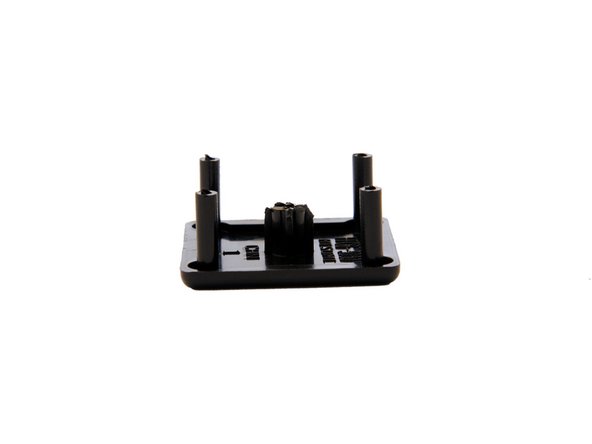

    • Now, prepare the 2x End Caps by shortening the center part by half (e.g. using a side cutter).

    • Be careful not to cut off too much or the end caps will not hold on the axis.

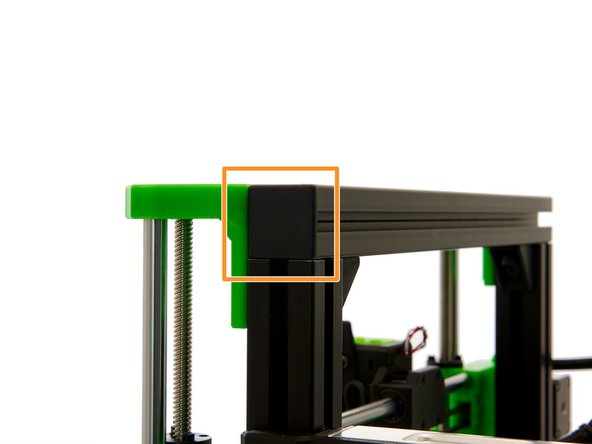

    • Finally, attach both end caps to the ends of the x-axis.

  10. Use a stop angle to ensure that the x- and z-axes are at a 90° angle to each other. Tighten the M6x12mm Hexagon Socket Head Cap Screw in the corner bracket on the x-axis. Tighten the M8x40mm Hexagon Socket Head Cap Screw in the x-axis.

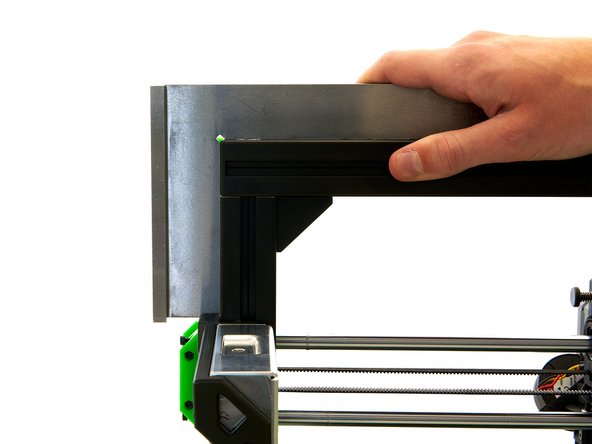

    • Use a stop angle to ensure that the x- and z-axes are at a 90° angle to each other.

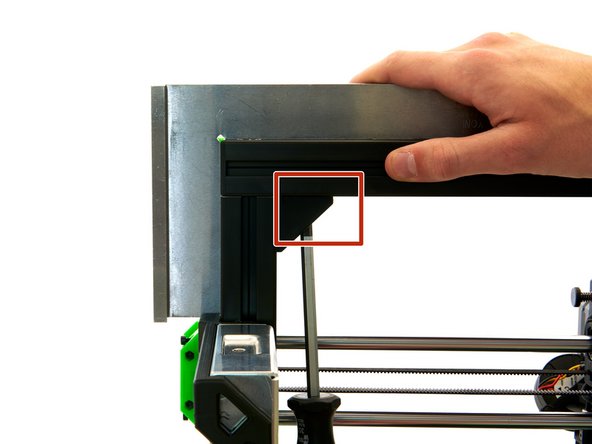

    • Tighten the M6x12mm Hexagon Socket Head Cap Screw in the corner bracket on the x-axis.

    • Tighten the M8x40mm Hexagon Socket Head Cap Screw in the x-axis.

    • Repeat this step on the other side.

    • Then re-check to make sure that the x- and z-axes are at a 90° angle to each other.

    • If this is not the case, you have to align the x-axis again.

  11. Once you have successfully aligned your x-axis, use a caliper to measure the distance between the two z-axes. To do this, place the caliper at the corner brackets.
    • Once you have successfully aligned your x-axis, use a caliper to measure the distance between the two z-axes.

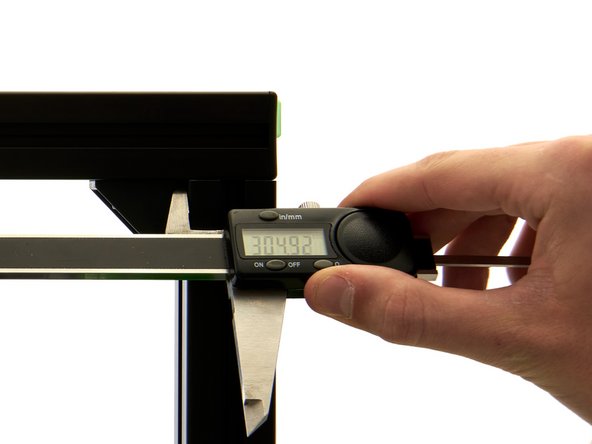

    • To do this, place the caliper at the corner brackets.

    • The distance between the two z-axes must range between 304.90 - 305.50mm.

    • The measured value between the two z-axes and those of the xy-frame, must not exceed a difference of 0.05mm.

    • If the difference of their values is > 0.05mm, you have to re-align the frame (see Step 11).

    • If the difference of their values is < 0.05mm, insert and tighten the 2x M8x40mm Hexagon Socket Head Cap Screws into the x-axis.

    • If necessary, tighten these two screws with a torque wrench set to 2.5NM.

    • To check this, measure the distance between the z-axes again. If these values are < 0.05mm, continue with Step 13. Otherwise, you have to loosen the 2x M8x40mm Hexagon Socket Head Cap Screws again and re-align the x-axis (see Step 11).

  12. Lastly, tighten the top M6x12mm Hexagon Socket Head Cap Screws on the left and right z-top mounts.

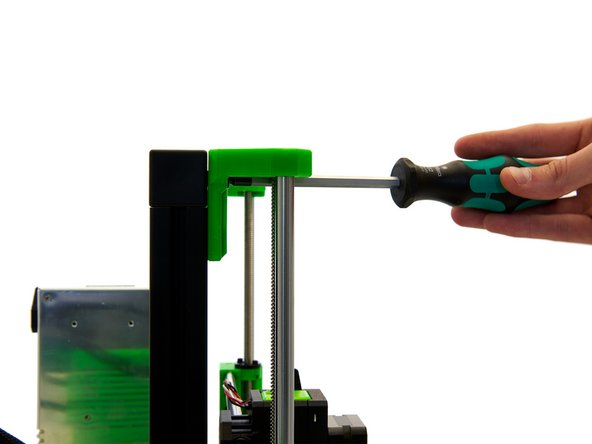

    • Lastly, tighten the top M6x12mm Hexagon Socket Head Cap Screws on the left and right z-top mounts.

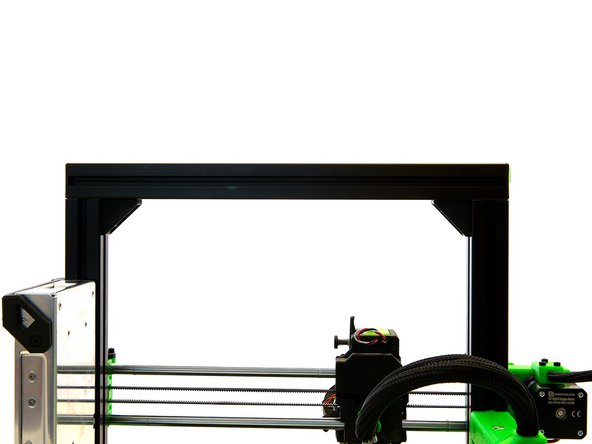

  13. The installation of the upper x-profile is completed now.
