18. Assembly and Installation of the Spoolholder

Written By: Katja Aller (and 2 other contributors)
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

7

Time Required

00:05:00 - 00:10:00

Sections

1

Flags

0

  1. Edit

  2. (1) Spoolholder

    • (1) Spoolholder

    • (2) Spoolholder Cap

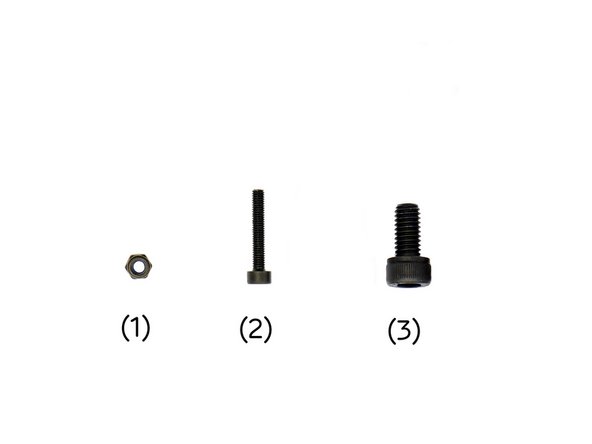

    Edit
  3. Edit

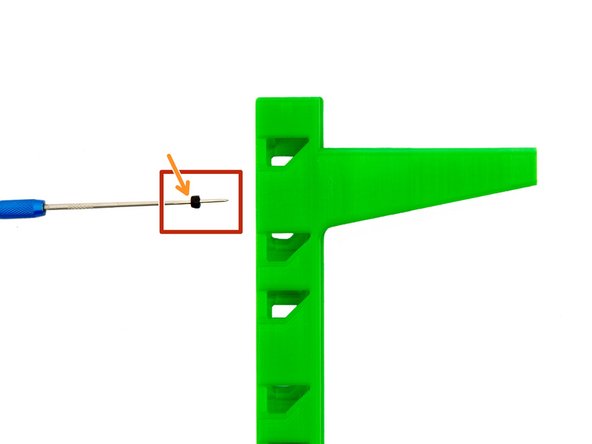

  4. Put the M3 Self-Securing Nut onto the engineer scriber. Pay attention to the direction: the blue safety ring must be on the opposite side of the scriber's tip. Pass the scriber through the spoolholder and insert the self-securing nut into the hole designated for this purpose.

    • Put the M3 Self-Securing Nut onto the engineer scriber.

    • Pay attention to the direction: the blue safety ring must be on the opposite side of the scriber's tip.

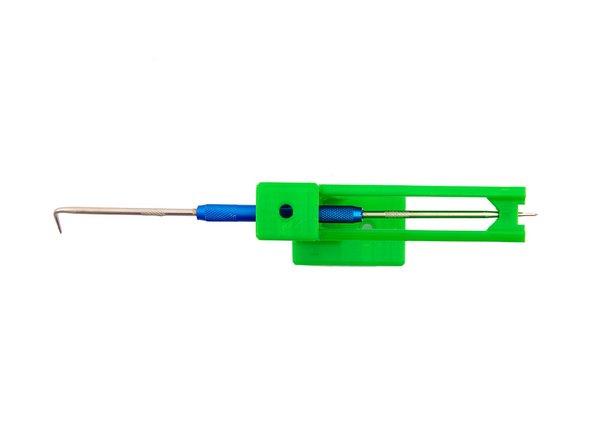

    • Pass the scriber through the spoolholder and insert the self-securing nut into the hole designated for this purpose.

    Edit

  5. Put the cap on the spoolholder. Fasten the cap with a M3x18mm Hexagon Socket Head Cap Screw. Fasten the cap with a M3x18mm Hexagon Socket Head Cap Screw.

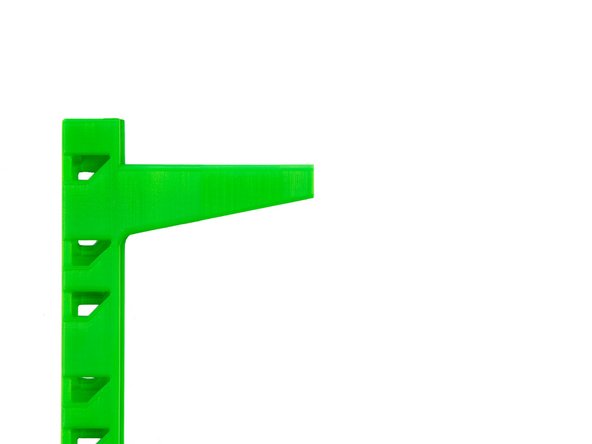

    • Put the cap on the spoolholder.

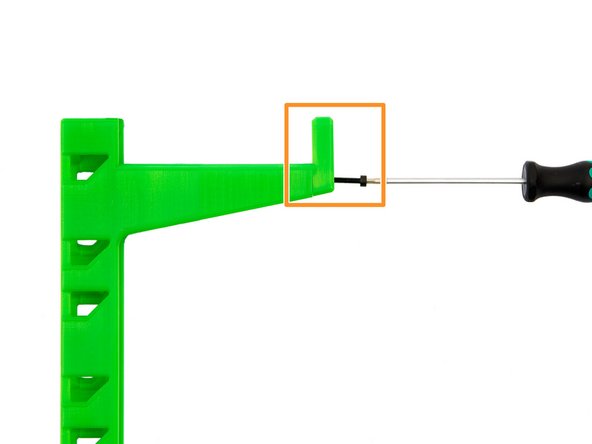

    • Fasten the cap with a M3x18mm Hexagon Socket Head Cap Screw.

    Edit

  6. Align the T-Nut on the upper x-axis approximately in the center of the axis. Place the assembled spoolholder on the upper x-axis and align the T-Nut so that the T-Nut sits underneath the hole in the spool holder.

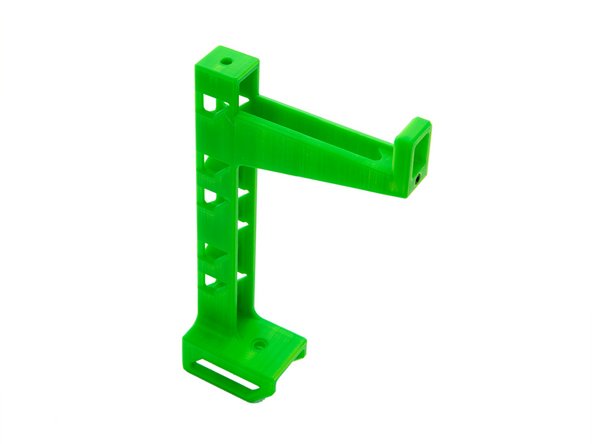

    • Align the T-Nut on the upper x-axis approximately in the center of the axis.

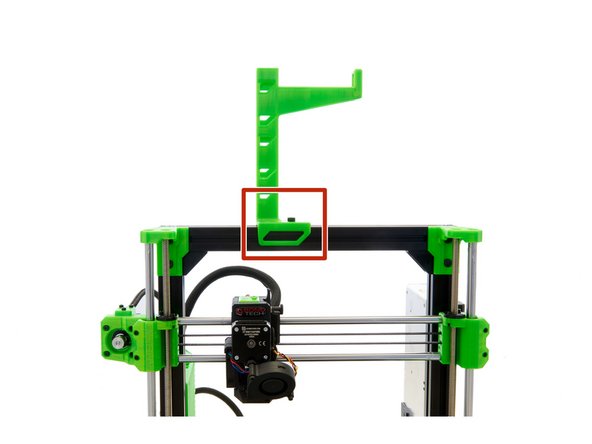

    • Place the assembled spoolholder on the upper x-axis and align the T-Nut so that the T-Nut sits underneath the hole in the spool holder.

    • Fasten the spoolholder with a M6x12mm Hexagon Socket Head Cap Screw.

    Edit

  7. The installation of the spoolholder is completed now.
