06. Assembly of the Einsy Box

(1) 2.5x75mm Hexagonal Screwdriver

(2) Pliers Wrench

(3) Engineer Scriber

(1) Einsy Box

(2) Einsy Rambo

(3) 4x M3 Nuts

(4) 11x M3 Square Nuts

(5) 4x M3x8mm Hexagon Socket Head Cap Screws

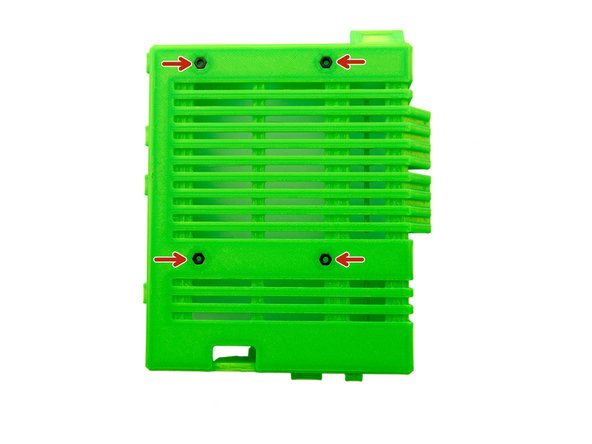

Insert 4x M3 Hexagonal Nuts (e.g. using a screwdriver or an engineer scriber) into the back of the Einsy Box.

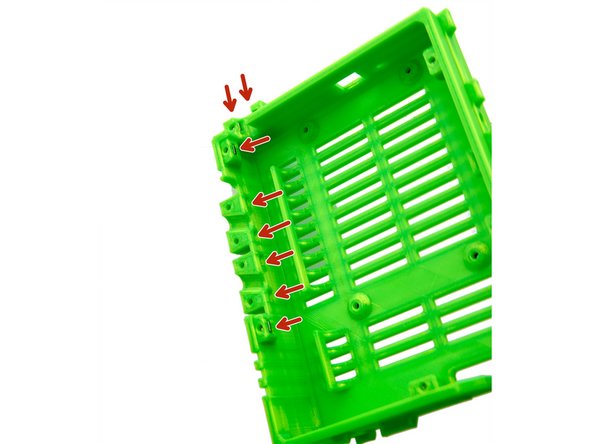

Slide 11x M3 Square Nuts into the slots provided on the inside of the Einsy Box.

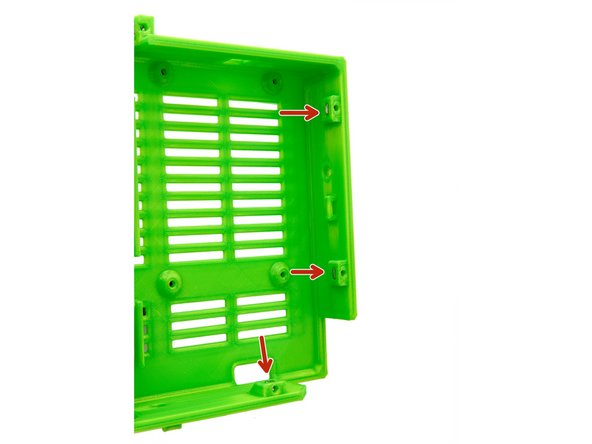

Here, we recommend using a pliers wrench to make the insertion of the square nuts easier. Also make sure that the nuts match the holes exactly.

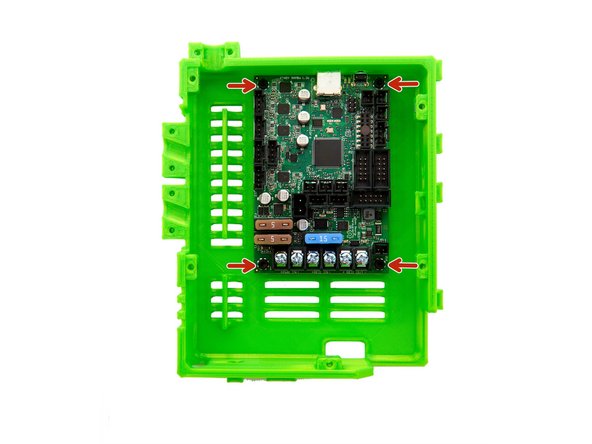

Finally, the Einsy Rambo is attached to the Einsy box using 4x M3x8mm Hexagonal Socket Head Cap Screws.

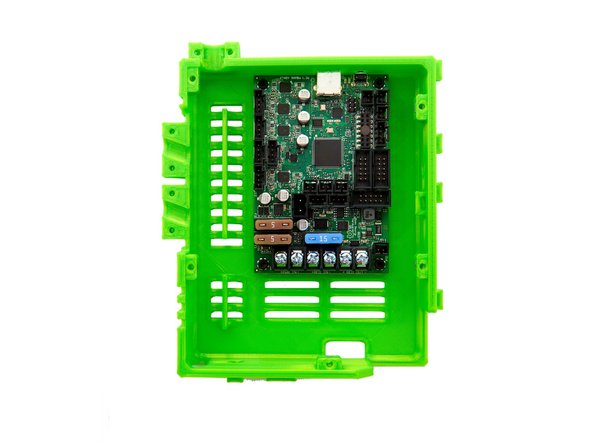

The assembly of the Einsy Box is now complete.

Continue with instructions 07. Assembly of the PSU if you have an unassembled power supply.

If your power supply is already assembled, continue with instructions 08. Installation of the Einsy Box and the PSU.
